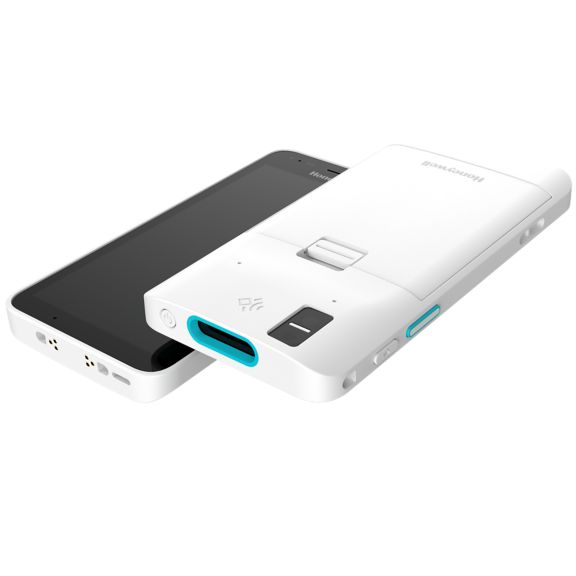

The CT30 XP is an all-purpose tool for healthcare institutions that need to empower nurses and other caregivers to provide safe and effective care as efficiently as possible. Intended for professionals who are expert and demanding users of their personal mobile phones, the CT30 XP enables fast, all-day access to comprehensive patient and therapy information; intuitive voice, text and video communications and efficient, snappy scanning with an elegant, lightweight, consumer-phone-experience. For IT leaders challenged with satisfying these users without compromising enterprise manageability, lifecycle, durability or security, the CT30 XP is built on the Mobility Edge platform, a durable, stable and secure foundation for effective, long-lasting solutions. The product leverages the latest processor and memory technology required by future high-performance software, while ensuring long-term Android compatibility – with guaranteed support from Android 11 to 13, and committed support for Android 14 and 15, subject to feasibility. Powerful Honeywell Operational Intelligence software uses data-driven insights to help prevent productivity-impacting issues in real time while reducing IT support costs to manage them.The slim, lightweight CT30 XP slips easily into the pocket and is easy to use, hold and carry over a long shift, yet resists cumulative damage from long-term use. The CT30 XP can withstand multiple room-temperature drops to concrete from 1.5m (5ft) and 500 tumbles at 0.5m. Disinfectant-ready housings enable frequent cleaning with harsh disinfectants without cracking or fading durable plastic housings.The premium CT30 XP feature set dovetails with the long lifecycle of the CT30 XP by ensuring performance and productivity over the life of the device. Support for Wi-Fi 6 in selected SKUs increases connection reliability, range and throughput in crowded conditions and provides a better experience in voice and video communications. The snappy Honeywell 7th-Generation scan engine with patient-friendly LED illumination reduces user fatigue while scanning small labels used for identifying patients, samples and medicines and verifying therapies. The full high-definition display (2160 x 1080p) is easy on the eyes and supports modern high-definition software. The PTT button and 8-megapixel front-facing camera enable effective and intuitive communications with teammates.CT30 XP comes with an extensive selection of accessories including 1, 4 and 5-bay chargers based on the space-efficient, Universal Dock system that maximizes long-term return on investment (ROI) by enabling low-cost upgrades to future devices. The simple, but effective carrying clip keeps the device safe when not in use but easily accessible when needed.

Features

• Camera
• 13-megapixel rear camera; 8-megapixel front camera
• Application
• Soft Goods Retail, General Merchandise and Healthcare
• Housing Grade
• Disinfectant Ready Housing
• For Use With
• Android
• Features
• Compatible with Universal Dock

Dimensions

• Overall Dimensions
• 154 mm x 76 mm x 12.6 mm 6.06 in x 2.99 in x 0.50 in

Scanning Specifications

• Decode Capability
• 1D/2D Barcode Symbologies

Network

• RFID Specifications
• Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 ICode, MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 Type F
• WWAN Specifications
• WWAN Radio ATT/VZW/SPRINT/TMO/NA/EU;NEWLINEAT&T FirstNet Compliant;NEWLINELTE Advanced Support;NEWLINEUp to 390 Mbps CAT13 LTE downlink and up to 75 Mbps CAT5 LTE uplink:NEWLINELTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71;NEWLINEUMTS/HSPA+ 3G: Bands 1, 2, 4, 5, 6, 8, 9, 19;NEWLINEGSM: 850, 900, 1800, 1900 Quad Bands
• Bluetooth Specifications
• V5.1 Bluetooth and BLE; 2nd BLE availble on all SKUs except CT30P-XXX-XXXXXNX . Bluetooth profiles includes HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT
• WLAN Specifications
• Wi-Fi certifiedNEWLINECT30P-X0N: IEEE 802.11 a/b/g/n/ac/ax and 2x2 MU-MIMO; NEWLINEAll other configurations: IEEE 802.11 a/b/g/n/ac;NEWLINEAll SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc
• GPS Specifications
• Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and BeiDou

Software & Firmware

• Operating System
• Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility

Memory & Data

• Memory
• 6GB DDR4x RAM, 64GB UFS Flash

Hardware

• Display Size
• 13.97 cm 5.5 in
• Scan Engine Type
• LED aimer and illumination
• Processor
• Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz
• Scan Engine Model
• Honeywell N6700
• Display Resolution
• Full High-Definition 2160 x 1080

Electrical

• Battery Types
• Replaceable between shifts; Warm-swappable
• Battery Capacity
• 3400mAh
• Battery Type
• Li-Ion; smart battery with integrated diagnostics tools

Environmental

• Storage Temperature Range
• -30°C to 70°C -22°F to 158°F
• Operating Humidity
• 5% to 95% non-condensing
• Operating Temperature
• -10°C to 50°C 14°F to 122°F

Standards & Approvals

• Drop Specifications
• 1.2 m 4 ft to concrete at through operating temperature per MIL-STD 810H; 1.5m 5ft to concret at room temperature per MIL-STD 810H.
• Protection Ratings
• IP67
• Tumble Specifications
• Exceeds 500 0.5 m 1.64 ft tumbles per IEC 60068-2-32 specification

Service Terms

• Warranty Duration
• One-year factory warranty

Others

• Keyboard
• Full Touch Screen Device
• Camera Position
• Rear and Front
• Operating System Type
• Android
• Platform
• Mobility Edge

Features

Dimensions

Scanning Specifications

Network

Software & Firmware

Memory & Data

Hardware

Electrical

Environmental

Standards & Approvals

Service Terms

Others

• Camera : 13-megapixel rear camera; 8-megapixel front camera

• Application : Soft Goods Retail, General Merchandise and Healthcare

• Housing Grade : Disinfectant Ready Housing

• For Use With : Android

• Features : Compatible with Universal Dock

• Overall Dimensions : 154 mm x 76 mm x 12.6 mm 6.06 in x 2.99 in x 0.50 in

• Decode Capability : 1D/2D Barcode Symbologies

• RFID Specifications : Integrated NFC reader, compliant with ISO/IEC 14443 A, ISO/IEC 14443 B, ISO/IEC 15693 ICode, MIFARE 1K / 4K, MIFARE DESFire, Sony FeliCa, ISO/IEC 18092 Type F

• WWAN Specifications : WWAN Radio ATT/VZW/SPRINT/TMO/NA/EU;NEWLINEAT&T FirstNet Compliant;NEWLINELTE Advanced Support;NEWLINEUp to 390 Mbps CAT13 LTE downlink and up to 75 Mbps CAT5 LTE uplink:NEWLINELTE: Bands 1, 2, 3, 4, 5, 7, 8, 12, 13, 14, 17, 19, 20, 25, 26, 28, 29, 30, 38, 39, 40, 41, 66, 71;NEWLINEUMTS/HSPA+ 3G: Bands 1, 2, 4, 5, 6, 8, 9, 19;NEWLINEGSM: 850, 900, 1800, 1900 Quad Bands

• Bluetooth Specifications : V5.1 Bluetooth and BLE; 2nd BLE availble on all SKUs except CT30P-XXX-XXXXXNX . Bluetooth profiles includes HFP, PBAP, A2DP, AVRCP, OPP, SPP, GATT

• WLAN Specifications : Wi-Fi certifiedNEWLINECT30P-X0N: IEEE 802.11 a/b/g/n/ac/ax and 2x2 MU-MIMO; NEWLINEAll other configurations: IEEE 802.11 a/b/g/n/ac;NEWLINEAll SKUs: 802.11 d/e/h/i/k/r/v/u/w/mc

• GPS Specifications : Simultaneous GNSS Receiver Support for GPS, GLONASS, Galileo and BeiDou

• Operating System : Each Android version guaranteed from Android 11 to at least 13, committed support for Android 14 and Android 15, pending feasibility

• Memory : 6GB DDR4x RAM, 64GB UFS Flash

• Display Size : 13.97 cm 5.5 in

• Scan Engine Type : LED aimer and illumination

• Processor : Qualcomm QCS4290/QCM4290 octa-core, 2.0GHz

• Scan Engine Model : Honeywell N6700

• Display Resolution : Full High-Definition 2160 x 1080

• Battery Types : Replaceable between shifts; Warm-swappable

• Battery Capacity : 3400mAh

• Battery Type : Li-Ion; smart battery with integrated diagnostics tools

• Storage Temperature Range : -30°C to 70°C -22°F to 158°F

• Operating Humidity : 5% to 95% non-condensing

• Operating Temperature : -10°C to 50°C 14°F to 122°F

• Drop Specifications : 1.2 m 4 ft to concrete at through operating temperature per MIL-STD 810H; 1.5m 5ft to concret at room temperature per MIL-STD 810H.

• Protection Ratings : IP67

• Tumble Specifications : Exceeds 500 0.5 m 1.64 ft tumbles per IEC 60068-2-32 specification

• Warranty Duration : One-year factory warranty

• Keyboard : Full Touch Screen Device

• Camera Position : Rear and Front

• Operating System Type : Android

• Platform : Mobility Edge
